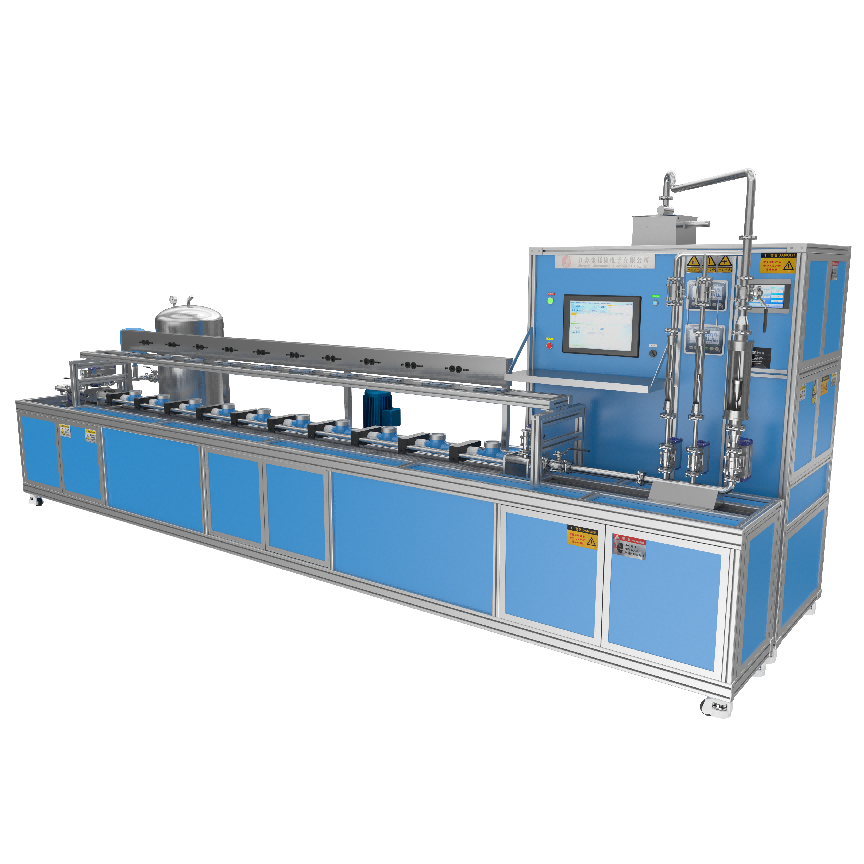

DN15-DN25 fully automatic water meter calibration device (horizontal type)
1. Overview: This calibration device is made of high-quality stainless steel 304, the surface is polished, and the main body is made of European standard aluminum alloy profiles. It has a novel and elegant appearance and can be moved as a whole. The integrated design has high precision, compact structure, long service life, and easy operation. , simple maintenance and other advantages.
Technical parameter requirements
(1) Reference standards:
1.JJG1113-2015 'Regulations on Water Meter Calibration Devices'
2.JJG162-2019 'Cold Water Meter Calibration Regulations'
(2) Main functional requirements:
1. Main functions: The device is a fully automatic camera-weighing water meter calibration platform. After the water meter is clamped, the dynamic image collector automatically enters the meter number and scans it into the system. The device automatically completes the calibration of nominal, boundary, and minimum flow in sequence. The camera reads the water consumption by automatically finding and identifying the plum blossom pointer or the red pointer, and can remove various bubble interference through the jet exhaust method. The PLC automatically collects the data of the calibrated meter and electronic scale, automatically calculates the error, and judges the test results. Save the output data. All calibration data can be stored and backed up in time, and can be queried or deleted at any time. The query function should include data such as time, table number, etc. for quick query.
2. The detection method is automatic reversal mass method verification, and is manually compatible with the start-stop mass method. DN15 is connected with 10 meters in series, DN20 is connected with 10 meters in series, and DN25 is connected with 5 meters in series.
3. The device is a fully automatic detection and calibration platform, and the device accuracy is not less than 0.2 level. The device can detect various flow points of DN15-25 (mm) water meters.
4. The device uses a high-definition color industrial all-aluminum alloy camera sensor or a brand-customized mobile phone to collect mechanical water meter data. It is easy to set the watch, has strong anti-interference ability, high waterproof level, and reliable recognition accuracy. It can identify the red pointer and the plum-blossom needle at the same time, which improves the detection speed and accuracy and can also determine whether there is a wrong installation between each gear inside the water meter counter, and whether there is a problem with the transmission ratio.
5. It can automatically collect data from calibrated meters and standard measuring instruments, automatically calculate errors, judge test results, and save output data. Saved data can be queried at any time.
6. The device is automatically operated by PC, and no manual intervention is required for other operations during the test. The device can automatically collect the signal of the meter under inspection, automatically input it into the PC, automatically calculate the error, and meet the needs of different types of water meter data collection (remote electronic water meters, Internet of Things water meters, LCD digital meters, etc.).
7. The device can display working conditions such as temperature and pressure in real time to facilitate personnel monitoring.
8. The device has a pressure test function and can perform pressure test on the water meter.
9. The entire equipment is made of aluminum alloy profiles and 304 stainless steel.
(3) Technical parameters
1Nominal diameter (mm): DN15-25;
2. Caliber of the meter being inspected: DN15, DN20, DN25;
3. Number of meters to be inspected: DN15 10 meters in series, DN20 10 meters in series, DN25 5 meters in series;
4Flow range: 0.04-8m³/h;
5 Dial recognition method: camera recognition red pointer + sensitive pointer, using a large industrial brand customized high-definition pixel smartphone;
6. Testing method: 1 mass scale for 150kg and 15kg each;
7Material: Made of high-grade industrial aluminum profiles and stainless steel 304;
8. Water source: Use well-known brand water pump. The water pump is equipped with a special base;
9. Water pump control cabinet: water pump frequency conversion control;
10 Pipe connection: food grade stainless steel 304;
11. Adopt multiple calibration modes: quick reversal calibration mode and start-stop calibration mode to meet the current requirements of cold water meter calibration regulations. The reversal weighing method is used when calibrating mechanical water meters. It is also compatible with the start-stop weighing method when calibrating ultrasonic liquid crystal display water meters. Photos of the dial through and through can be retrieved for data comparison or saving for future data traceability.
12Select high-definition pixel smartphones from major industrial brands;
Collect mechanical water meter data. It can be used normally in harsh working environments such as moisture, dust, and high temperature in industrial environments. Can automatically identify and track multiple water meter types such as red pointers and plum blossom needles;
13 pairs of barcodes are water meter numbers. On the dial with clear barcodes, the device can automatically identify barcodes and QR codes including Code-128, EAN-128 and other encoding forms, and generate the water meter number for automatic storage;
14. The device can perform single-point repeated testing or multi-point combination testing, and free-style combination testing. Meet the performance testing of different types of water meters;
15. The device has a pressure test function and can perform a pressure test on the water meter. The test pressure is ≤2.56MPa;
16. The equipment table is made of 304 stainless steel, which is anti-corrosion and wear-resistant. The table must be wide enough to place the water meter;
17 microcomputer control system:
17.1 The system has a good operation interface to meet the actual needs of calibration; all calibration data can be stored and backed up in time, and can be queried or deleted at any time. The query function should include time, table number and other data to facilitate quick query.
17.2 All calibration reports can be printed directly, and the format must meet the requirements of technical specifications. It can be printed individually immediately or saved to the database for centralized printing.
17.3 The software is suitable for use by the purchaser. If modifications and upgrades are required, free services will be provided in a timely manner.
17.4 The entire control system can carry out all first inspection and arbitration inspection items.
17.5 Able to automatically monitor and record pipeline pressure and temperature. Can monitor and alarm for safety factors. The operation interface dynamically displays the water flow status.
17.6 The computer must be a brand-name machine with a 64-bit operating system, 8G memory, Intel Core I7 processor, a 512G solid-state drive, and a mechanical hard drive of 1T or more; the LCD display should be no less than 24 inches.
