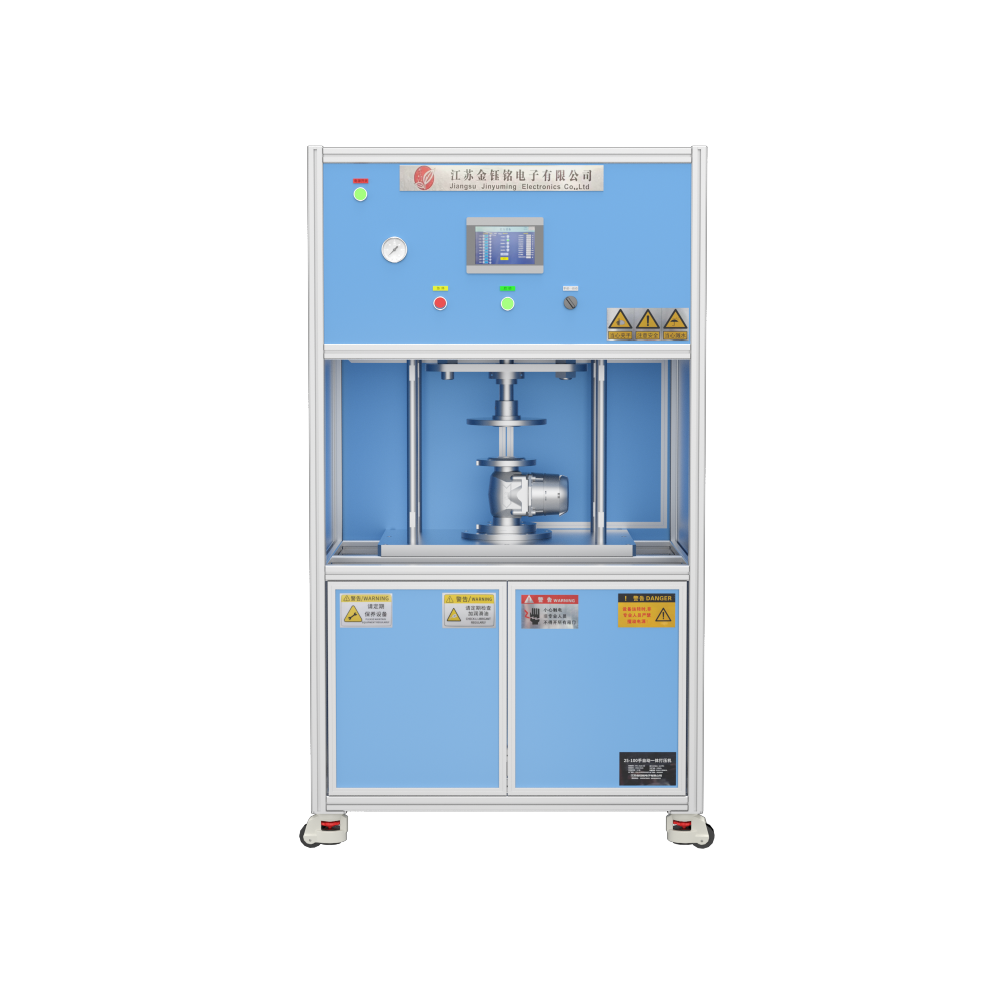

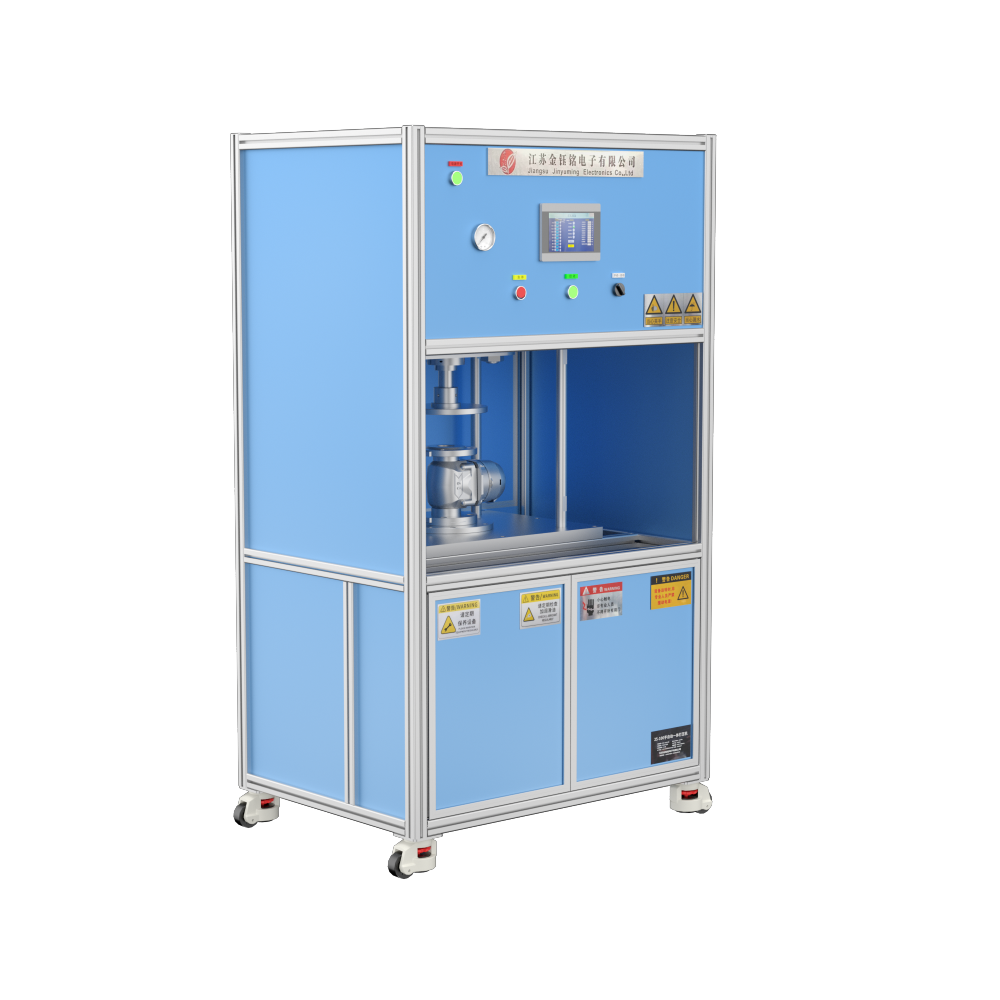

DN32-D100 Fully Automatic Water Meter Sealing Verification Device (horizontal Type)

1. Small size, small occupied area, corrosion resistance, and wheel hub at the bottom for easy movement;
2. 7-inch touch screen panel, which can set the pressing pressure, pressing time and other parameters.
3. Pneumatic quick meter clamping is faster and more efficient than the traditional hydraulic top clamping method, and does not require an external high-pressure water source.
4. One-key start, one-key selection, manual, automatic, safe operation.
5. The equipment consumes low power, saves energy and electricity, and can be operated by one person, saving labor and time.

Detailed product information: ask the sales staff for details.
  • JYM-32-100-1-ADZH-PS2.0

  • 金钰铭

Availability:

Function parameter table

Calibration medium: pure tap water;

Caliber of the meter to be inspected: 1 each of DN32, DN40, DN50, DN65, DN80 and DN100;

Working voltage: AC220V

Water meter sealing test: pressure range (1.6~3.2) MPa;

Vacuum system: differential pressure vacuum generator

Water source working pressure: 0.2-1.0Mpa

Adjustable, air source working pressure: 0.4-0.7MPa;

Meter clamping mechanism: single meter independent pneumatic meter clamping device;

Water pump: Nanfang water pump CHM3-1, flow rate 2m³/h, head 30 meters

Water tank: 200L
